CellCrown^TM插件

colorless wells
polycarbonate (medical grade)

non-sterile

lid

pack of 6 ea

Scaffdex C00005N

96 wells

170-200 μL

CellCrown 96 is a unique and novel cell culture insert for standard 96 well plates. This is the first insert in the market, which allows easy attachment of thicker samples, up to 2 mm in the insert. Also attachment of rigid samples is possible between the holding cup and insert part.

Holding cup can be used alone and it prevents attachment of the sample to the bottom of the well. Insert part can be placed two ways in deeper and higher position. When two holes on the edge of cup and cusps in the inner part are matching the insert is suitable for thin samples. When they are not in the same position, combination is suitable for samples of 2 mm in thickness. Please note that fit of cup and inner part is slightly looser in this position and insert need to be handled with care.

After installation of the samples cups are cut off from their frame and the insert is ready to be used in well plate. It is also possible to use shorter pieces than row of 8 inserts. The round portions between inserts allow clear markings for identification of the samples. During cell culturing it is important to follow the sufficient level of cell culture media in wells. For CellCrown 96 the recommended amount of media in well is 170 - 200 μl, depending on size of the sample.

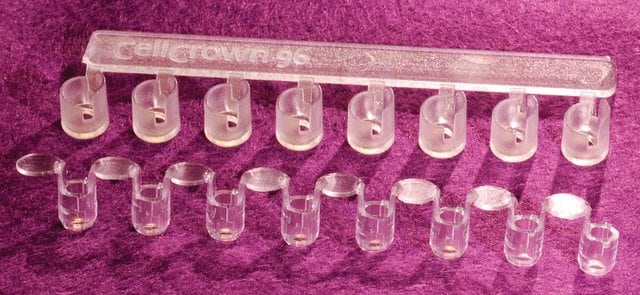

CellCrown 96 inserts are transparent in color, dark version was used for photographing for clearer images.
CellCrown 是一种一次性插件，可将样品固定在 6、12、24、48 和 96 孔板上。可以使用 CellCrown 将纤维、箔、膜、织物、组织和块状样品固定在孔中一个牢固的、可调节的位置。在更换培养基的过程中，可通过在孔壁和 CellCrown 插件之间进行移液，从而将样品留在孔中。使用 CellCrown 时，培养板的盖子是可以关闭的。该插件可以从孔板中取出，并在细胞培养后将其卸载，而不会损坏样品。CellCrown 由医用聚碳酸酯制成，半岛bd体育手机客户端 线包括即用型无菌半岛bd体育手机客户端 以及需要用户灭菌的非无菌半岛bd体育手机客户端 。可以通过伽马射线或电子束辐射、高压灭菌、环氧乙烷气体和等离子灭菌进行灭菌。

灭菌条件：
温度....... 121℃/250°F
时间.................. 15 分钟
干燥时间......... 15 分钟

CellCrown is a trademark of Scaffdex Oy
