BIOshell^TMlgG, C4 2.7 μm HPLC Column

半岛bd体育手机客户端 说明

一般描述

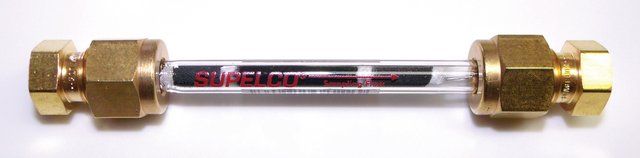

BIOshell^?IgG 1000? C4 is a high-speed, high-performance liquid chromatography column based on a new wide-pore (1000?) Fused-Core^?particle design. The Fused-Core particle provides a thin porous shell of high-purity silica surrounding a solid silica core. This particle design exhibits very high column efficiency due to the shallow diffusion paths in the 0.5-micron thin porous shell and the small overall particle size of 2.7-microns. The densely bonded, extensively endcapped dimethylbutyl stationary phase of BIOshell IgG 1000? C4 provides a stable, reversed-phase packing that can be used for separating high molecular weight compounds such as proteins.

应用

UHPLC Analysis of Trastuzumab on BIOshell^?IgG 1000 ? C4, 2.7 μm
UHPLC Analysis of IgG2 on BIOshell^?IgG 1000 ? C4, C18, and Diphenyl, 2.7 μm

法律信息

BIOshell is a trademark of sigma-aldrich Co. LLC
Fused-Core is a registered trademark of Advanced Materials Technology, Inc.

基本信息

NACRES

SB.52

半岛bd体育手机客户端 性质

质量水平	100
物料	stainless steel hardware
agency	suitable for USP L26
描述	Shell thickness (0.5 μm) Solid core (1.7 μm)
半岛bd体育手机客户端 线	BIOshell?
特点	endcapped
specific analyte(s)	IgG
manufacturer/tradename	BIOshell?
包装	1 ea of
标记范围	0.6% carbon loading
参数	600 bar pressure 90 ℃ max. temp.
technique(s)	HPLC: suitable LC/MS: suitable UHPLC-MS: suitable UHPLC: suitable
长度 × 内径	2 cm × 4.6 mm
基质	spherical silica particle platform superficially porous particle
基质活性基团	C4 (butyl) phase
粒径	2.7 μm
孔径	1000 ?
表面积	22 m2/g
操作pH范围	2 - 9
分离技术	reversed phase

安全信息

储存分类代码	11 - Combustible Solids
WGK	nwg
闪点(F)	Not applicable
闪点(C)	Not applicable
