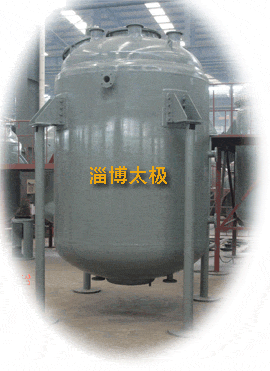

搪玻璃储罐(贮罐)用以存放酸、醇、气体等提炼的化学物质。根据结构分可分为:开式搪玻璃储罐(贮罐)、闭式搪玻璃储罐(贮罐)、卧式搪玻璃储罐(贮罐)等。它是石油、化工、粮油、食品、消防、交通、冶金、国防等行业必不可少的、重要的基础设施,我们的经济生活中总是离不开大大小小的储罐。太极标准闭式搪玻璃储罐(贮罐)规格:3000L、4000L、5000L、6300L、8000L、10000L、12500L、16000L、20000L、25000L、30000L、50000L等,也可根据用户需要进行非标闭式搪玻璃贮罐定做,太极搪玻璃贮罐质量可靠、服务周到、用户放心。
参数表:
型号 |
ZF-3000 |
ZF-4000 |
ZF-5000 |
ZF-6300 |
ZF-8000 |
ZF-10000 |
公称容积 L |
3000 |
4000 |
5000 |
6300 |
8000 |
10000 |
实际容积 L |
3337 |
4441 |
5550 |
7024 |
8910 |
11142 |

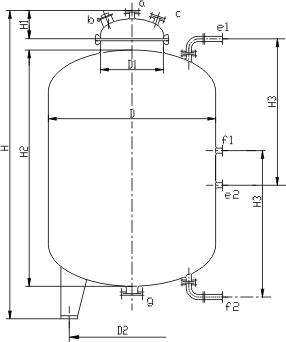

尺寸(mm) |
D |
1450 |
1600 |
1600 |
1750 |
1900 |
2200 |
D1 |
600 |
600 |
600 |
600 |
600 |
700 |
D2 |
1015 |
1120 |
1120 |
1225 |
1330 |
1540 |
H1 |
310 |
310 |
310 |
310 |
310 |
351 |
H2 |
2260 |
2470 |
3020 |
3210 |
3460 |
3300 |
H3 |
1400 |
1500 |
1800 |
1900 |
2000 |
1900 |
-H |
2933 |
3182 |
3732 |
3924 |
4174 |
4053 |
管口尺寸 (mm) |
a |
65 |
65 |
65 |
65 |
65 |
80 |
b |
125 |
125 |
125 |
125 |
125 |
125 |
c |
65 |
65 |
65 |
65 |
65 |
65 |
d |
65 |
65 |
65 |
65 |
65 |
65 |
e |
2-65 |
2-65 |
2-65 |
2-65 |
2-65 |
2-65 |
f |
2-65 |
2-65 |
2-65 |
2-65 |
2-65 |
2-65 |
g |
125 |
125 |
125 |
125 |
125 |
125 |
h |
2-65 |
2-65 |
2-65 |
2-65 |
2-65 |
2-65 |
参考重量Kg |
1700 |
2070 |
2100 |
3000 |
3580 |
4440 |
型号 |
ZF-12500 |
ZF-16000 |
ZF-20000 |
ZF-25000 |
ZF-30000 |
ZF-50000 |
公称容积 L |
12500 |
16000 |
20000 |
25000 |
30000 |
50000 |
实际容积 L |
13872 |
17766 |
22217 |
27790 |
33301 |
51605 |
尺寸(mm) |
D |
2400 |
2400 |
2600 |
2800 |
3000 |
3000 |
D1 |
700 |
700 |
700 |
700 |
700 |
700 |
D2 |
1680 |
1680 |
1820 |
1960 |
2100 |
2100 |
H1 |
351 |
351 |
351 |
351 |
351 |
351 |
H2 |
3460 |
4320 |
4620 |
4980 |
5230 |
7800 |
H3 |
2000 |
1700 |
1800 |
1900 |
2000 |
2000 |
-H |
4215 |
5075 |
5375 |
5739 |
6001 |
8775 |
管口尺寸 (mm) |
a |
80 |
80 |
80 |
80 |
80 |
80 |
b |
125 |
125 |
125 |
125 |
125 |
125 |
c |
65 |
65 |
65 |
65 |
65 |
65 |
d |
65 |
65 |
65 |
65 |
65 |
65 |
e |
2-65 |
2-65 |
2-65 |
2-65 |
2-65 |
2-65 |
f |
2-65 |
2-65 |
2-65 |
2-65 |
2-65 |
2-65 |
g |
125 |
125 |
125 |
125 |
125 |
125 |
h |
2-65 |
2-65 |
2-65 |
2-65 |
2-65 |
2-65 |
参考重量Kg |
5660 |
6800 |
8490 |
9830 |
11880 |
16800 |
