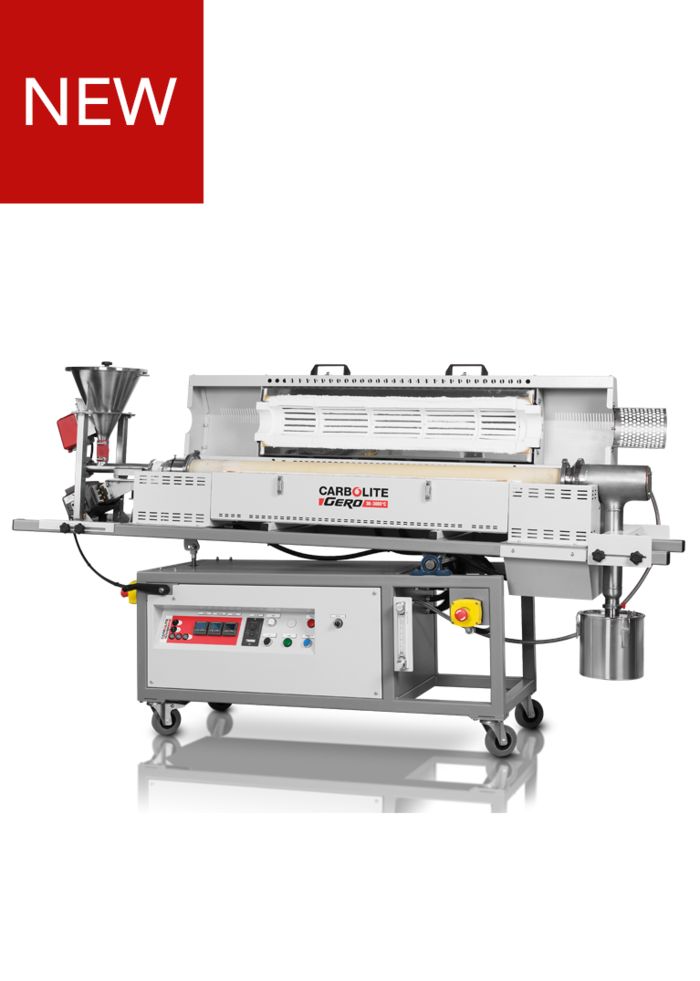

The range of Carbolite Gero horizontal rotating tube furnaces offers the benefits of simultaneous heating and mixing of the sample, in addition to the use of an inert atmosphere.
The furnaces are suitable for continuous material processing. Residence time in the heated zone depends on the degree of inclination and the rotating speed (which can be controlled by the customer) and the length of the working tube, in addition to the flow properties of the material.
The design of the split furnace, drive system and feeder/ collection assemblies allows the work tube to be easily removed and replaced.
The single zone and 3-zone split tube furnaces have a maximum operating temperature of 1150 ℃. All models are available with heated lengths of either 600 mm or 900 mm. The angle of inclination can be easily adjusted between horizontal and 10 °. The ceramic (IAP) work tube has an inner diameter of 75 mm. A safety switch automatically prevents heating and tube rotation when the furnace is opened.
It is essential to discuss your application with Carbolite Gero to ensure the suitability of the material for use in this equipment. Carbolite Gero cannot accept responsibility for your process due to the possibility of the material becoming sticky when heated and therefore not flow through the work tube.
标准参数
1150 ℃ maximum operating temperature; normal operating temperature range 650 ℃ - 1050 ℃
Heated lengths of 600 mm and 900 mm
Single zone models fitted with Carbolite Gero 301 PID controller with single ramp to setpoint
3-zone models: Centre zone fitted with 301 PID controller. End zones fitted with 2132 slave controllers
Single or 3-zone models
Accepts work tube with inner diameter of 75 mm
Adjustable inclination and rotation speeds offers flexibility of residence time
Work tube rotation speed 1.5 to 10.0 revolutions per minute
5 litre capacity vibratory feeder and hopper
The temperature controllers and associated equipment are housed within the integral control box
Wire elements in high quality vacuum formed insulation ensure fast heat up, excellent temperature uniformity and short cool down times
选项(订购时详细标注要求)
Quartz (up to 1100 ℃) or metallic (up to 800 ℃) work tubes
5 litre capacity heavy duty vibratory feeder and hopper
Inert gas packages available on request
内容可能会被修改或更正。
RHST 11/75/600
| 最高温度（℃） |
1150 |
| Max. inner diameter accessory tube (mm) |
75 |
| Number of heated zones |
Three zone |
| Dimensions: External H x W x L (mm) |
1500 x 550 x 2200 |
| 加热长度 (mm) |
600 |
| Work tube length |
1500 |
| 最大功率 (W) |
3800 |
RHST 11/75/900
| 最高温度（℃） |
1150 |
| Max. inner diameter accessory tube (mm) |
75 |
| Number of heated zones |
Single zone |
| Dimensions: External H x W x L (mm) |
1500 x 550 x 2200 |
| 加热长度 (mm) |
900 |
| Work tube length |
1500 |
| 最大功率 (W) |
5500 |
RHZS 11/75/600
| 最高温度（℃） |
1150 |
| Max. inner diameter accessory tube (mm) |
75 |
| Number of heated zones |
Three zone |
| Dimensions: External H x W x L (mm) |
1500 x 550 x 2200 |
| 加热长度 (mm) |
600 |
| Work tube length |
1500 |
| 最大功率 (W) |
3800 |
RHZS 11/75/900
| 最高温度（℃） |
1150 |
| Max. inner diameter accessory tube (mm) |
75 |
| Dimensions: External H x W x L (mm) |
1500 x 550 x 2200 |
| 加热长度 (mm) |
900 |
| Work tube length |
1500 |
| 最大功率 (W) |
5500 |
请注意：
- Maximum continuous operating temperature is 100 °C below maximum temperature
- Heat up rate when using an optional ceramic work tube must be limited to 5 °C/min
