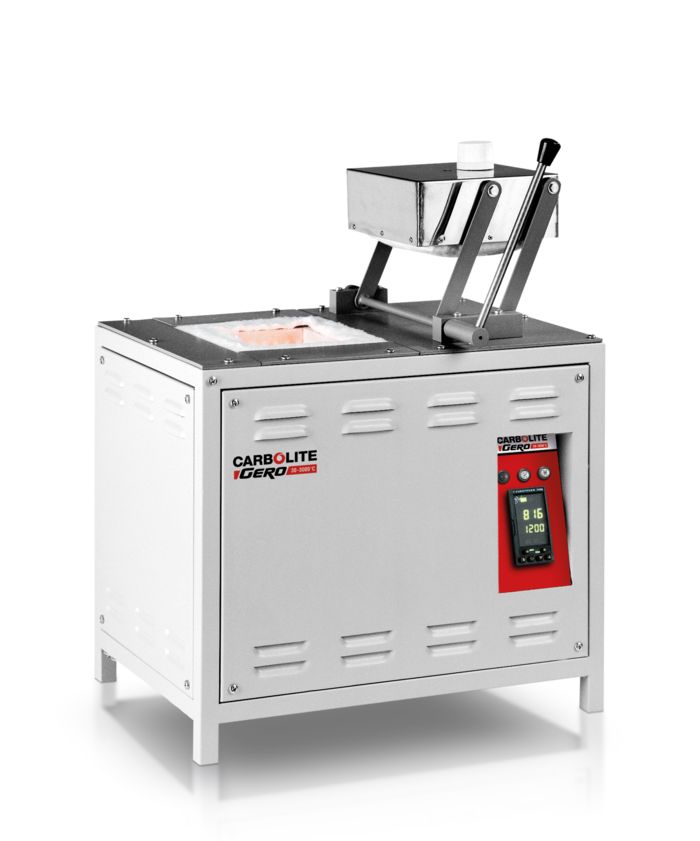

These top loading chamber furnaces are particularly suited for applications involving tall crucibles and heavy components.
Heating elements in all four walls minimise the risk of damage from spills and ensures good temperature uniformity. The smaller two furnaces may be benchmounted, but best access is provided when these furnaces are located on the floor.
标准参数
最高工作温度1200℃
5, 10, 23 or 100 litre chamber volume
Free radiating wire elements in all 4 sides of chamber
Vented top opening door
Angled control panel, protected but clearly visible
PID301标准控制器，单段程序控制
Thermocouple protected by ceramic sheath
选项(订购时详细标注要求)
过温保护
A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
内容可能会被修改或更正。
VCF 12/5
| 加热时间(mins) |
102 |
| 尺寸: 内部 高 x 宽 x 纵深 (mm) |
260 x 155 x 130 |
| 尺寸: 外部 高 x 宽 x 纵深 (mm) |
660 x 530 x 405 |
| 配置 |
Floor-standing |
| 最大功率 (W) |
2500 |
| 持续功率 (W) |
900 |
| 热电偶种类 |
R |
| 重量 (kg) |
50 |
VCF 12/10
| 加热时间(mins) |
138 |
| 尺寸: 内部 高 x 宽 x 纵深 (mm) |
365 x 180 x 155 |
| 尺寸: 外部 高 x 宽 x 纵深 (mm) |
765 x 555 x 430 |
| 配置 |
Floor-standing |
| 最大功率 (W) |
3000 |
| 持续功率 (W) |
1200 |
| 热电偶种类 |
R |
| 重量 (kg) |
60 |
VCF 12/23
| 加热时间(mins) |
125 |
| 尺寸: 内部 高 x 宽 x 纵深 (mm) |
450 x 250 x 200 |
| 尺寸: 外部 高 x 宽 x 纵深 (mm) |
850 x 600 x 500 |
| 配置 |
Floor-standing |
| 最大功率 (W) |
6000 |
| 持续功率 (W) |
2500 |
| 热电偶种类 |
R |
| 重量 (kg) |
130 |
VCF 12/100
| 加热时间(mins) |
150 |
| 尺寸: 内部 高 x 宽 x 纵深 (mm) |
600 x 410 x 410 |
| 尺寸: 外部 高 x 宽 x 纵深 (mm) |
1100 x 930 x 950 |
| 配置 |
Floor-standing |
| 最大功率 (W) |
15000 |
| 持续功率 (W) |
6000 |
| 热电偶种类 |
R |
| 重量 (kg) |
200 |
请注意：
- Heat up rate is measured to 100°C below max, using an empty chamber
- Holding power is measured at continuous operating temperature
- The uniform volume is smaller than the total chamber volume
内容可能会被修改或更正。
