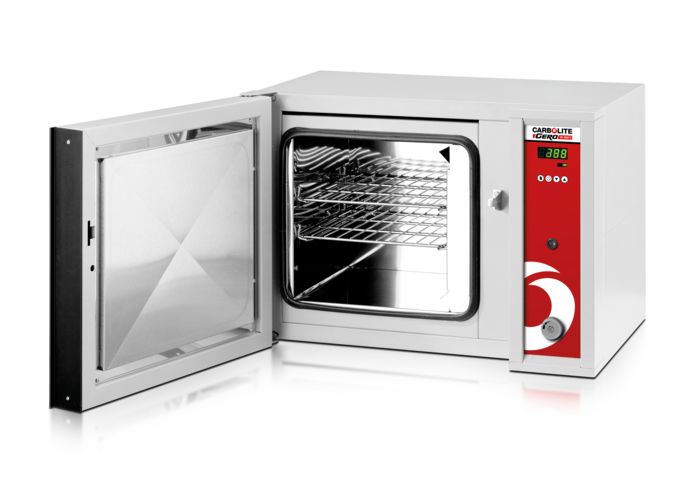

Laboratory ovens of the Peak series 300 °C are available in both PN natural convection and in thePF fan convection models. All PN models are bench mounted.
In the PN ovens air circulation depends upon natural convection. The resulting slow airfl ow is preferable, for example, for processes involving powders which may be disturbed by fan convection or where there is a risk of cross contamination between samples. The reduced complexity makes natural convection a less expensive option.
标准参数
Economical natural convection models
300°C maximum operating temperature
Equipped with theR38 digital PID temperature controller
Chemically resistant stainless steel liner
Two nickel-chrome plated wire shelves
Lever latch door & airtight silicone seal
Compliant with safety standard BS EN 61010-2-010:2003
选项(订购时详细标注要求)
过温保护
A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
Access port for independent thermocouple
Accessory shelves & runners
Heavy duty reinforced base and shelves
Cable entry ports
Viewing window
Interior light
Stacking frame
Lockable door
Door switch to isolate elements
Floor stands & wheeled trolleys
Routine spares kit
内容可能会被修改或更正。
PN30
| 最高温度（℃） |
300 |
| 最低温 |
Ambient +30 |
| 体积 (L) |
27 |
| Temp stability (°C) |
±0.5 |
| 温度均一性 |
±7.0 @ 300°C |
| 加热时间(mins) |
52 |
| 恢复时间 (mins) |
8.5 |
| 尺寸: 内部 高 x 宽 x 纵深 (mm) |
255 x 330 x 320 |
| 尺寸: 外部 高 x 宽 x 纵深 (mm) |
470 x 665 x 470 |
| 架子安装 / 可装 |
2 / 3 |
| 每个装载架 / 总(kg) |
10 / 20 |
| Optional heavy duty reinforced base max. weight (kg) |
40 |
| Optional heavy duty shelves max. quantity |
2 |
| Optional heavy duty shelves max. weight / shelf (kg) |
20 |
| 最大功率 (W) |
750 |
| 持续功率 (W) |
300 |
| 重量 (kg) |
30 |
| 电源供应 |
220V - 240V, 50-60Hz,单相电 |
PN60
| 最高温度（℃） |
300 |
| 最低温 |
Ambient +30 |
| 体积 (L) |
57 |
| Temp stability (°C) |
±0.5 |
| 温度均一性 |
±7.0 @ 300°C |
| 加热时间(mins) |
52 |
| 恢复时间 (mins) |
8.5 |
| 尺寸: 内部 高 x 宽 x 纵深 (mm) |
350 x 392 x 420 |
| 尺寸: 外部 高 x 宽 x 纵深 (mm) |
570 x 765 x 570 |
| 架子安装 / 可装 |
2 / 5 |
| 每个装载架 / 总(kg) |
10 / 30 |
| Optional heavy duty reinforced base max. weight (kg) |
60 |
| Optional heavy duty shelves max. quantity |
3 |
| Optional heavy duty shelves max. weight / shelf (kg) |
20 |
| 最大功率 (W) |
1000 |
| 持续功率 (W) |
480 |
| 重量 (kg) |
45 |
| 电源供应 |
220V - 240V, 50-60Hz,单相电 |
PN120
| 最高温度（℃） |
300 |
| 最低温 |
Ambient +30 |
| 体积 (L) |
115 |
| Temp stability (°C) |
±0.5 |
| 温度均一性 |
±7.0 @ 300°C |
| 加热时间(mins) |
52 |
| 恢复时间 (mins) |
8.5 |
| 尺寸: 内部 高 x 宽 x 纵深 (mm) |
450 x 492 x 520 |
| 尺寸: 外部 高 x 宽 x 纵深 (mm) |
670 x 865 x 670 |
| 架子安装 / 可装 |
2 / 9 |
| 每个装载架 / 总(kg) |
10 / 40 |
| Optional heavy duty reinforced base max. weight (kg) |
80 |
| Optional heavy duty shelves max. quantity |
3 |
| Optional heavy duty shelves max. weight / shelf (kg) |
25 |
| 最大功率 (W) |
1500 |
| 持续功率 (W) |
720 |
| 重量 (kg) |
60 |
| 电源供应 |
220V - 240V, 50-60Hz,单相电 |
PN200
| 最高温度（℃） |
300 |
| 最低温 |
Ambient +30 |
| 体积 (L) |
215 |
| Temp stability (°C) |
±0.5 |
| 温度均一性 |
±7.0 @ 300°C |
| 加热时间(mins) |
58 |
| 恢复时间 (mins) |
10 |
| 尺寸: 内部 高 x 宽 x 纵深 (mm) |
700 x 592 x 520 |
| 尺寸: 外部 高 x 宽 x 纵深 (mm) |
920 x 965 x 670 |
| 架子安装 / 可装 |
2 / 15 |
| 每个装载架 / 总(kg) |
10 / 50 |
| Optional heavy duty reinforced base max. weight (kg) |
100 |
| Optional heavy duty shelves max. quantity |
4 |
| Optional heavy duty shelves max. weight / shelf (kg) |
25 |
| 最大功率 (W) |
2250 |
| 持续功率 (W) |
1160 |
| 重量 (kg) |
75 |
| 电源供应 |
220V - 240V, 50-60Hz,单相电 |
请注意：
- Uniformity is measured in an empty chamber with vents closed, after a stabilisation period
- Shelf loadings are based on evenly distributed weight
- Maximum power and heat up times based on a 240V supply
- The uniform volume is smaller than the total chamber volume
