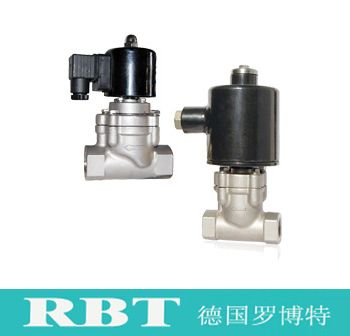

进口水下用电磁阀

【半岛bd体育手机客户端 特点Product featvres】

德国罗博特RBT进口水下用电磁阀采用塑封线圈，提高阀的可靠性，阀芯均为不锈钢材料、活塞式结构；动作响应迅速；专制线圈，采取防水方式，不易烧毁;现场可自由安装、动作响应迅速、阀体采用热锻成型工艺、外型美观；长时间停止动作重新启动，动作同样灵敏；使用寿命长达100万次以上。

Robert RBT of Germany imported submersible electromagnetic valve adopts plastic coil, improve the valve's reliability, the spool is stainless steel material, the piston type structure; action to respond quickly; autocratic coil, to take water way, not easy to burn; field free installation, action quick response, body by hot forging forming process, and the appearance is beautiful; a long time stop action restart, the same movement sensitive; service life of up to more than 100 million times.

【主要技术参数Main technical parameters】

通径范围：DN1-DN300。

控制方式：常开、常闭、自保持式。

电源电压：DC12-127V;AC24-220V。

阀体材质：黄铜、铸钢、不锈钢。

适用介质：水、气、油等。

压力范围：O.1-6.4MPa。

温度范围：-40+100。

介质粘度：小于50C St(大于时需定制)。

防护性能：防水。根据工况选择。

接线方式：引线式。

连接方式：法兰、焊接内螺纹(外螺纹和特殊接口可定做或加转接头)

The size range:DN1-Dn300

Control mode:normally open, normally closed, self-retaining

The power supply voltage:DC12-127V; AC24-220V

The valve body material:steel,stainless steel.

Applicable medium:water, gas, oil

Pressurerange:0.1-6.4MPa

Temperature range:-40+100

The viscosity oFihe medium:less than 50C St(more than required custom)

The protective performance:waterproof. According to the working condition

The connection mode:lead type

The connection:flange, welding, threaded(external threads and a special interface can be customized or adapter)

【应用范围Scope of application】

景观啧泉、船舶重工、石油化工、给排水、清洗设备、水厂、管道介质自动化控制等领域。

landscape fountain,shipbuilding,petrochemical,water supply and drainage, cleaning equipment, water plant, the medium in the pipeline automation control field.

注解：流体中若含有杂质，电磁阀进端必须安装过滤器，出口端压力大于进口端压力，介质会反向导通。可安装止回阀或订制自带止回功能的阀门。
