VFFS Machine With Multihead Weigher For Granule Product CB-420PM/520PM/680PM

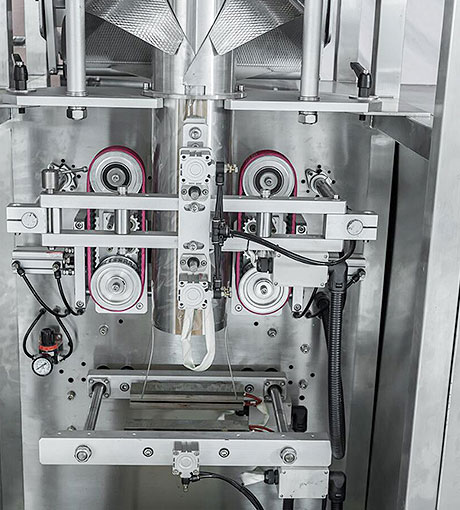

VFFS Machine With Multihead Weigher For Granule Product CB-420PM/520PM/680PM图片
半岛bd体育手机客户端 介绍

Description

    • Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.

    • Use famous brand electric and pneumatic components, stable and long life circle.

    • Use superior mechanical components, reduce the wear out loss.

    • PLC control with stable and high accuracy output.

    • Two color touch screen 7″, one for packing machine, another for multihead weigher

Outstanding Features

    • Controlled by PLC,touch screen HMI let operation direct and simple

    • The main machine and multihead weigher is made of stainless steel 304, in line with health requirement

    • The key components are adopted famous international brands, stable and durable

    • The machine structure is simple and firm, helpful for reducing vibration and noise when machine working

    • The whole packaging processes if full automatic, more efficient and save labor cost

    • 2 heads , 4 heads ,10 heads, 14 heads, 16 heads and 20 heads weigher are available and suitable to different packing needs.

Specification

Model CB-420PM CB-520PM CB-680PM
Max width of roll film 420mm 520mm 720mm
Max Bag width 200mm 250mm 350mm
Max Bag length 300mm 400mm 480mm
Packing speed 5-60bags (according to single bag weight)
Measuring range 150-1200ml 3000ml 6000ml
Packing material many kinds of composite film
(OPP/CPP,OPP/PE,PET/PE,NY/PE etc.)
or pure PE film
Air consumption ≥0.65MPa
Power voltage 220V/380V, 50HZ/60HZ,1 phase/3 phase
Power 2KW 2.5KW 3.5KW
Net weight 550KGS 650KGS 720KGS
Metering device multihead weigher
