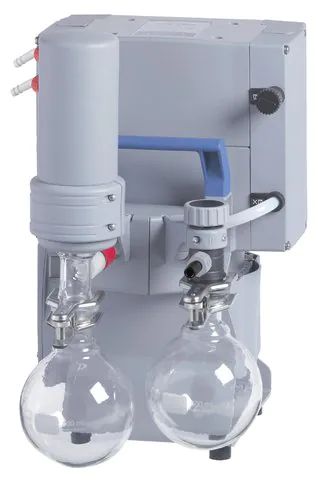

Vacuubrand chemistry vacuum system

半岛bd体育手机客户端 说明

一般描述

This chemistry vacuum system has a wide range of applications, like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories. This system is suited for high vacuum requirements with high boiling solvents. Typical applications are rotary evaporators and drying ovens.

The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery, efficient recycling of solvents and active protection of the environment. Items supplied completely mounted, ready for use, with manual.

• Outstanding chemical resistance and superior vapor tolerance
• Exceptionally high performance even at low vacuum
• Excellent ultimate vacuum even with gas ballast
• Whisper quiet and very low vibration
• Excellent environmental friendliness due to efficient solvent recovery
• IP40 rated protection

Order 10 mm connecting tubing separately.

基本信息

NACRES

NB.79

半岛bd体育手机客户端 性质

特点	CE compliant (Number of heads / stages 4/3)
manufacturer/tradename	Vacuubrand MD 4C NT+AK+EK
参数	1.5 mbar vacuum 3 mbar vacuum (with gas ballast) 3.4/3.8 m3/h pumping speed
入口和出口尺寸	10 mm , connection nozzle
尺寸长度 × 宽度 × 高度	326 mm × 243 mm × 402 mm
尺寸	6-8 mm , coolant connection 2 x hose nozzle
